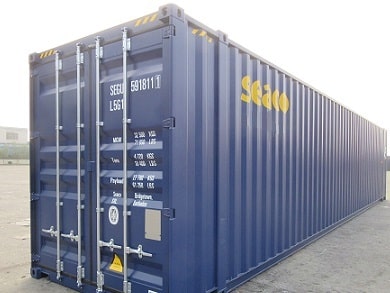

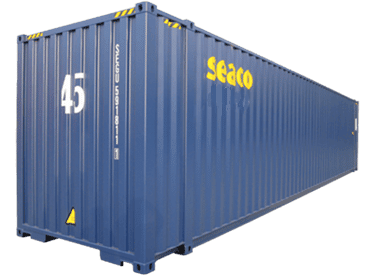

45ft High Cube Dry Freight Container
45ft High Cube container sizes designed and constructed for intermodal freight transportation of lighter general cargo on sea (above or under deck) and on land (road or rail) to utilise the maximum cubic capacity.
Overview
- Offers 3,040 cu.ft / 86.cu.m capacity
- Ideal for lighter weight cargo
- Includes a gooseneck tunnel to cover for road transportation
Metric
Dimensions
External Length……………………………………………………13,716 mm
External Width……………………………………………………2,438 mm
External Height……………………………………………………2,896 mm
Internal Length……………………………………………………13,556 mm
Internal Width……………………………………………………2,352 mm
Internal Height……………………………………………………2,698 mm
Door Opening Width……………………………………………………2,340 mm
Door Opening Height……………………………………………………2,585 mm
Cubic Capacity……………………………………………………86.0 m3
Weights
Maximum Gross Weight……………………………………………………32,500 kgs
Tare Weight……………………………………………………4,700 kgs
Payload Weight……………………………………………………27,800 kgs
Test Criteria – Allowable Stacking Load for 1.8kg
| Stacked and Supported at 45ft Position |
216,000 kgs |
| Stacked and Supported at 40ft Position |
97,500 kgs |
| Stacked at 40ft and Supported at 45ft Position |
65,000 kgs |
| Stacked at 45ft and Supported at 40ft Position |
97,500 kgs |
| Floor Strength |
7,260 kgs |
| Transverse Racking |
15,240 kgs |
| Side Wall Strength |
0.6P |
| End Wall Strength |
0.4P |
| Condition | New, Refurbished, Used |
|---|
